Sockets & Holders for Infrared Lamps
Reliable electrical and mechanical connections are essential for safe and efficient infrared heating systems.
DR. FISCHER Europe offers robust socket and holder solutions designed to simplify lamp installation, improve safety, and reduce maintenance time in industrial and commercial applications.
Our portfolio includes classic ceramic holders as well as the innovative ClicFit quick-connect system for fast and secure lamp mounting.
Key Advantages of ClicFit
Fast Lamp Replacement
Lamps can be clicked in and out within seconds, reducing downtime during maintenance.Secure Electrical Connection
Large electrical contact surfaces ensure reliable current transfer.Mechanical Stability
The lamp is firmly held inside a high-quality ceramic socket.Improved Safety
The ceramic housing insulates the electrical connection and reduces the risk of accidental contact.Reduced Risk of Lamp Damage
No twisting or complex wiring minimizes stress on the lamp during installation.- Designed for Frequent Use
Multiple plug-in and removal cycles do not significantly affect connection quality.
Sockets and Holders from DR. FISCHER Europe
General Information - Sockets and Holders:
Sockets and holders are critical components in infrared heating systems, ensuring both safe electrical contact and reliable mechanical support of the lamp. DR. FISCHER Europe provides high-quality ceramic socket and holder solutions designed for demanding industrial environments where high temperatures, vibration, and frequent maintenance are common.
Our solutions are engineered to simplify installation, improve operational safety, and reduce maintenance time. Whether using traditional ceramic holders or innovative quick-connect systems like ClicFit, DR. FISCHER sockets and holders guarantee stable performance, long service life, and compatibility with a wide range of double-ended infrared lamps.
By combining robust materials with smart connection concepts, our socket and holder systems help manufacturers achieve efficient production processes while ensuring safe and durable lamp integration.
ClicFit – Quick Connection System for Infrared Lamps
ClicFit is DR. FISCHER’s innovative solution for fast, safe, and tool-free mounting of double-ended infrared lamps.
Based on the patented DR. FISCHER SK15 ceramic cap standard, ClicFit allows lamps to be plugged in and removed within seconds while ensuring optimal electrical and mechanical contact.
Technical Information
ClicFit Lamp Limits
- Power: 3000 W max – 13 A max
- Overall lamp length: 500 mm max
- Nickel-plated steel tab: 300 °C max
- Ceramic cap (SK15-21 type): 300 V max
ClicFit Holder Limits (classic and compact)
- Ceramic socket & plate: 300 V max
- Stainless steel hook & contact: 270 °C max
- Nickel-plated brass rivet: 270 °C max
- PTFE cable: 250 °C max
ClicFit Systems
Classic ClicFit

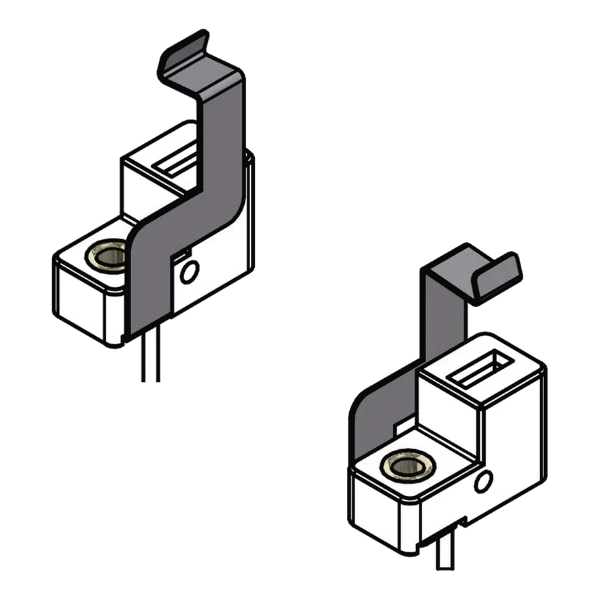

Compact ClicFit (left and right)

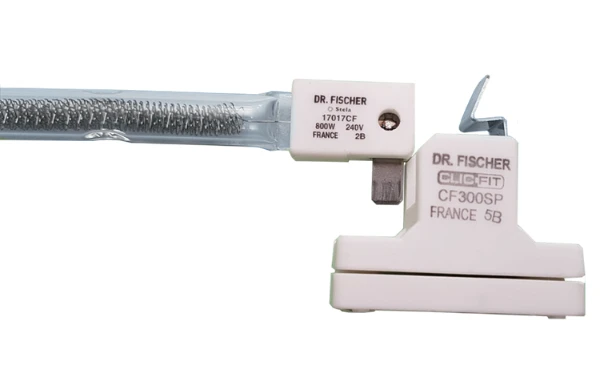

ClicFit connector on an infrared lamp plus holder

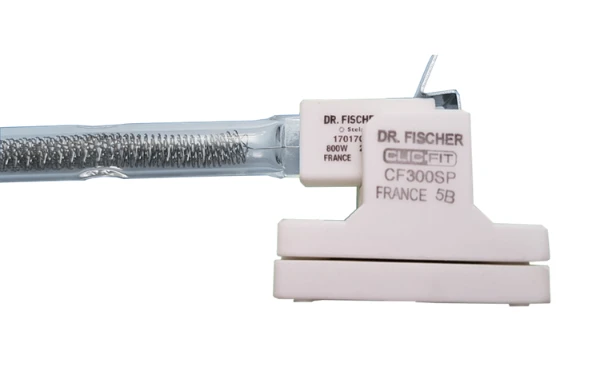

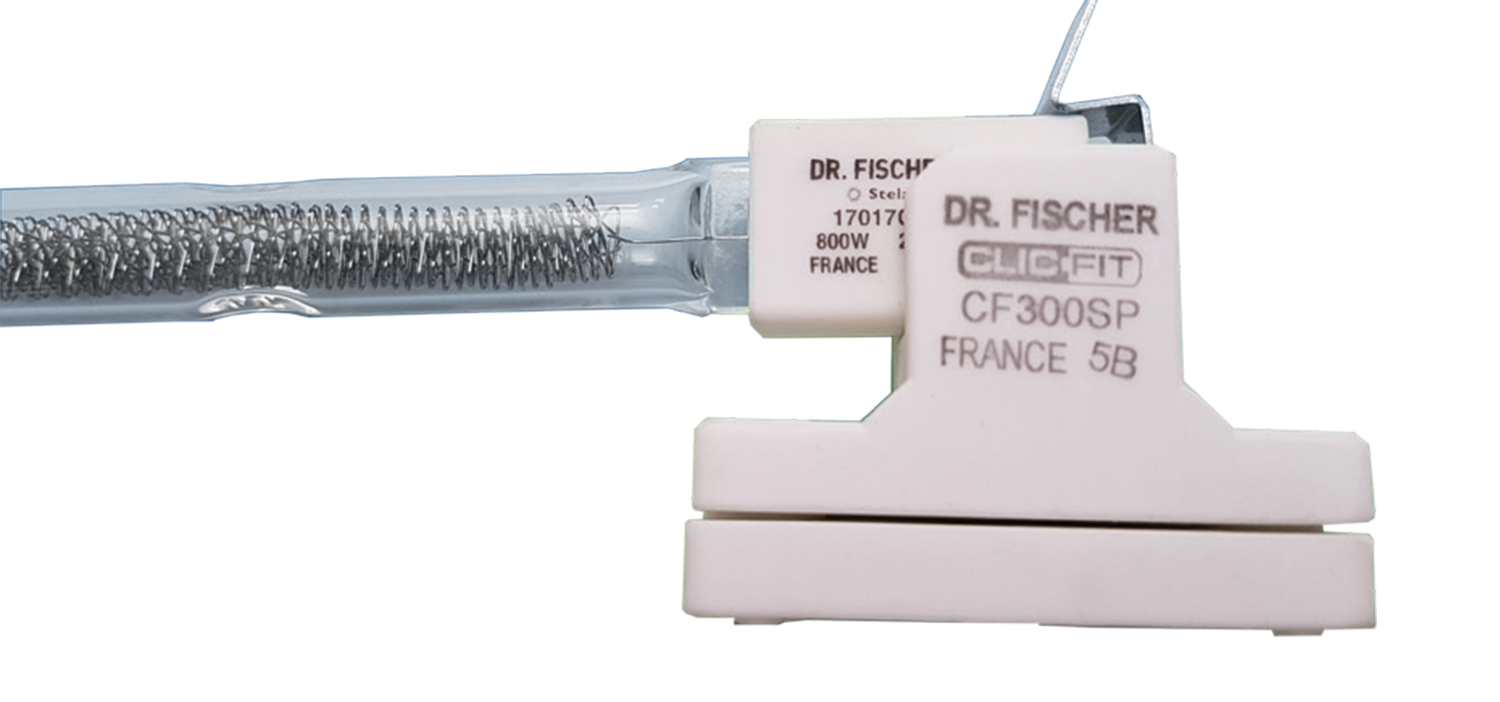

Infrared lamp connected
Product Variants
| Type | Cable length | Terminal | Qty per box | Order # |
|---|---|---|---|---|
| CF300SP | 300 mm | Holder ClicFit | 20 pcs | 914515000143 |
| CF915SP | 915 mm | Holder ClicFit | 20 pcs | 914515000242 |
| CF2000SP | 2000 mm | Holder ClicFit | 20 pcs | 914515000343 |
| CFC2500SP (ClicFit Compact) |
2500 mm | Compact Holder ClicFit | 10 pairs | 914530000201 |
| CFC900ULSP (ClicFit Compact, UL) |
900 mm (UL) | Compact Holder ClicFit | 10 pairs | 914530000101 |
Classic Ceramic Sockets & Holders
For applications requiring traditional mounting solutions, DR. FISCHER also provides durable ceramic holders and sockets designed for high temperatures and demanding environments.

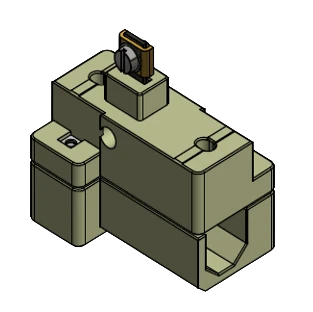

Classic Ceramic Socket
Key Advantages of Classic Ceramic Sockets & Holders
High thermal resistance
Reliable electrical insulation
Stable mechanical fixing of lamps
Suitable for a wide range of infrared lamp types
Typical Applications of Sockets and Holders:
Infrared Heating Systems
Secure electrical and mechanical connection of double-ended infrared lamps.Industrial Ovens & Dryers
Reliable lamp mounting in high-temperature drying and curing processes.Thermoforming & Plastic Processing
Stable lamp positioning in heating modules for forming and shaping thermoplastics.Surface Treatment & Coating Lines
Durable socket solutions for systems with frequent lamp operation and replacement.Machine Manufacturing & Integration
Simplified lamp installation during equipment assembly using quick-connect systems like ClicFit.Maintenance-Intensive Installations
Fast and safe lamp replacement in applications requiring regular service intervals.
By using robust and well-designed socket and holder solutions, manufacturers ensure safe operation, reduced maintenance time, and long-lasting performance in infrared heating systems.
Selected Examples from Our Sockets and Holders:
Classic Ceramic Sockets
Durable ceramic sockets designed for reliable electrical insulation and stable mechanical fixation of infrared lamps. Ideal for high-temperature environments and continuous industrial operation.
Classic ClicFit
A robust quick-connect solution based on the DR. FISCHER SK15 ceramic cap standard. Enables fast and secure plug-in mounting of infrared lamps while ensuring strong electrical contact and mechanical stability.
Compact ClicFit
A space-saving version of the ClicFit system designed for installations with limited mounting space. Provides the same fast lamp replacement and reliable connection in a more compact holder design.
